48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E

Name: 48 Port Gigabit LAN Switch Cisco Catalyst 3650 WSC365048FDE
Brand: CISCO
Price: 2855 USD

Wholesale 48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E from china suppliers

Brand Name : CISCO

Model Number : WS-C3650-48FD-E

Certification : FCC

Place of Origin : USA

MOQ : 1/unit

Price : $2855/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20/unit/day

Delivery Time : 3 days

Packaging Details : 58*55*25cm

Product Name : 48 Port Gigabit LAN Switch Cisco

Transmission : 10/100/1000Mbps

Switch Type : Gigabit Switchs

Products Status : In Stock

AC Power Supply : 1025 WAC

Communication : Full-Duplex&Half-Duplex

Warranty : 1 year warranty

Uplink ports : 2 x10G

Contact Now

48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E

Description:Cisco Catalyst WS-C3650-48FD-E is next generation of enterprise-level

stackable access layer switch and integrates with 48 Gigabit Ethernet POE+ and 2x10G Uplink ports

in IP Services feature set.

Table 1 shows the Quick Specs.

Product Code	WS-C3650-48FD-E
Enclosure Type	Rack-mountable - 1U
Feature Set	IP Services
Uplink Interfaces	2x10G Uplink ports
Ports	48 x 10/100/1000 Ethernet POE+
Maximum stacking number	9
Stack bandwidth	160 Gbps
Forwarding Performance	104.16 Mpps
Switching Capacity	254 Gbps
RAM	4 GB
Flash Memory	2 GB
Dimensions	4.4 x 44.5 x 44.8 cm
Package Weight	7.8 Kg
AC Power Supply	1025 WAC
Available PoE Power	775 W

48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E

Attaching the Rack-Mount Brackets

To install the switch in a rack, use four No. 8 Phillips flat-head screws to attach the long side of the brackets to the switch for the front-mounting or rear-mounting positions Figure 1. Use four screws to attach the brackets for the front-mounting position.

Figure 1 Attaching Brackets for 19-inch Racks

48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E

①

Rear-mounting position

②

Number-8 Phillips flat-head screws

③

Front-mounting position

Table 2. Cisco Catalyst 3650 Performance Specifications

Model	Forwarding Rate
4 x 1 Gigabit Ethernet Uplink-Models
3650-24TS	41.66 Mpps
3650-24PS	41.66 Mpps
3650-48TS	77.37 Mpps
3650-48PS
3650-48FS
2 x 10 Gigabit Ethernet Uplink-Models
3650-24TD	68.45 Mpps
3650-24PD
3650-24PDM
3650-48TD	104.16 Mpps
3650-48PD
3650-48FD
3650-8X24PD	172.61 Mpps
3650-12X48FD	261.90 Mpps
4 x 10 Gigabit Ethernet Uplink-Models
3650-48TQ	130.95 Mpps
3650-48PQ
3650-48FQ
3650-48FQM
3650-8X24UQ	202.38 Mpps
3650-12X48UQ	291.66 Mpps

Package & Delivery

Selling Units	Single item
Package Type	CISCO F/S NIB original sealed box inside , and another blank carton box to protect it from broken
Shipment	Ship Via UPS, DHL, EMS, FEDEX, TNT,EMS, POSTAL etc or other options by clients
Lead Time	Fast transportation time within 48 hours after payment confirm
Quantity (Piece)	<30	31 - 100	>100
Est. Time (day)	2	3	To be negotiated

Why Choose US

Warranty	1 Year warranty from professional cisco agents
Service	24 Hours online service
Quality	100% Original Cisco Sealing Products from Cisco Factory.
Price	Competitive Price with a big Discount from china mainland
Advantages	Cisco China Agents
	Providing constructive suggestions for solutions and installations.

48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E

Product Tags:

managed gigabit switch

gigabit network switch

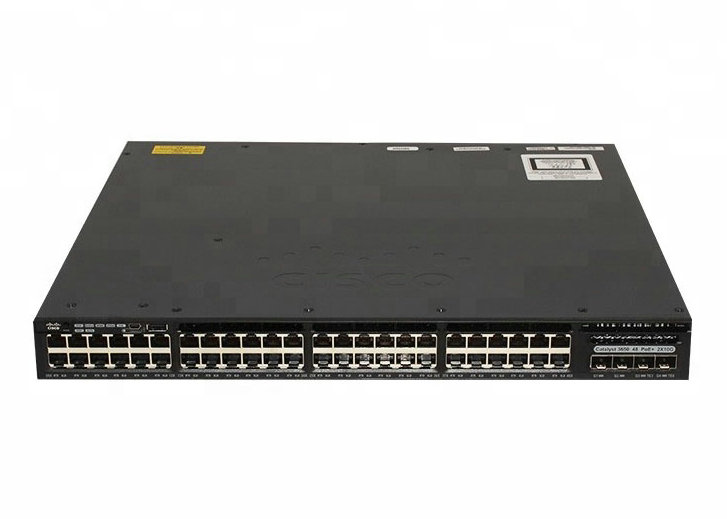

48 Port Gigabit LAN Switch Cisco Catalyst 3650 WS-C3650-48FD-E Images
